Solar PV in Iowa

Solar Photovoltaics In Iowa

Solar PV Systems For Iowa

Simply defined, Photovoltaics (PV) are best known as a method for generating electric power by using solar cells to convert energy from the sun into electricity. The photovoltaic effect refers to photons of light knocking electrons into a higher state of energy to create electricity.

Over 95% of the solar PV systems in the United States are grid-tied systems, meaning they are connected to the grid, provide the ability for solar owners to “store” their excess energy on the grid, and use grid energy during low-solar production days or at night. There are four (4) common types of solar PV systems. Let’s explore a brief outline of each.

ECG Solar™ offers only the finest selection of Premium Tier 1 Panasonic™ solar products available. Our unique relationship with our distributors and manufacturers ensures that you receive the highest quality, most affordable products and prompt availability.

Learn About Solar PV Systems

Grid-Tied Systems

By far the most common type, Grid-Tied Systems offer the greatest return on investment. They are simple and very reliable applications. An owner can select three (3) types of PV systems from DC, Micro-Inverter, or Optimized DC. They all offer different solutions depending on the installation application. Don’t worry. We’ll help you through that process. Our recommendation is ACPV or Micro-Inverters since they currently deliver the most significant benefits.

Despite myths about solar, Grid-Tied Systems will not work when the grid power is down, so you’ll be in the dark just like everyone else, however new IQ8 technology would offer Day-Time Backup with out the grid, generator or batteries. All Grid-Tied Systems in the United States are required to shut down during an outage due to safety concerns for utility workers. If you need power during an outage, then a bi-modal solar system — or standby generator — is the best solution for that application.

Expect to pay $2.80 to $3.50 per watt for a Grid-Tied System. They require very little maintenance and are designed to last 30+ years. They are ideal for residential and commercial applications and can be configured for a slight offset of grid power or net-zero goals.

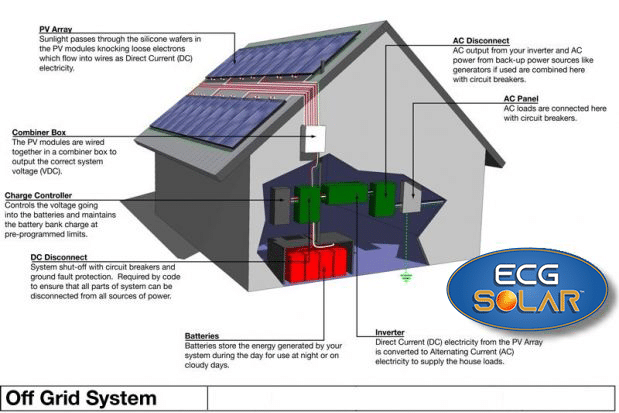

Off-Grid Systems

Off-Grid Systems are far less common, primarily due to cost. And with grid power readily available in the United States, it is an application for unique projects. These systems are entirely stand-alone, relying on battery storage and, potentially, backup generators. They can be expensive but definitely less costly than connecting to a grid power source in remote areas. They need to be carefully designed and configured so that they operate according to the owner’s intent of use.

Expect to pay $4.75 to $8.50 per watt for an Off-Grid System. They require more attention and maintenance than any other type of PV system. They are designed to last 30+ years; however, the batteries will most likely need to be replaced about every 7 to 10 years. Expect a high expense of ownership with these types of systems. They are the ideal option for residential systems in some cases.

Bi-Modal Systems

Bi-Modal Systems, otherwise known as Grid-Tied Systems with Battery Backup, are connected to the power grid (or your utility provider). They provide greater energy independence because you have a backup in the event utility power goes down. Grid-Tied Systems with Battery Backup are typically more expensive because of the addition of a battery bank needed to hold excess energy during times of no-grid power or solar production.

An additional upside of being connected to the grid with a battery backup is that you will still have power until your storage is used up if you lose grid power. However, a more cost-effective and low-maintenance approach is installing a standby generator.

Expect to pay $3.80 to $6.00 per watt for a Bi-Modal System.

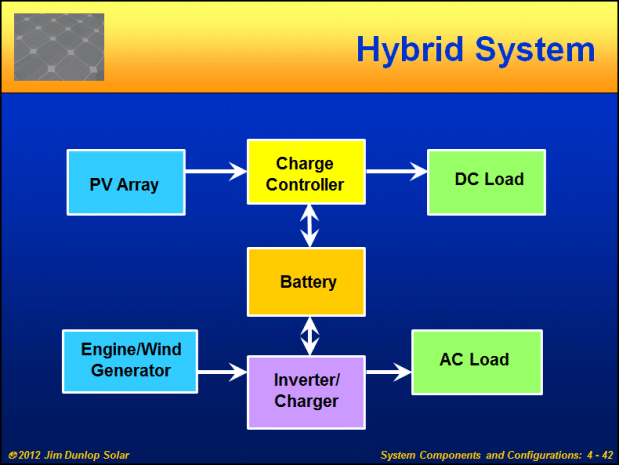

Hybrid Systems

Hybrid Systems are any of the above with the addition of other energy sources such as hydro, fuel cell, wind, or a generator. Hybrid systems offer the greatest flexibility and can take advantage of the natural weather and time-of-year benefits to provide a wide range of energy solutions.

Expect to pay $5 to $10 per watt for a hybrid system. The solar portion of the power plant would yield minimal maintenance; however, other systems, such as wind, could add more to operating costs and maintenance. The system is more complex with more potential failure points, but can offer solutions that can address power production and backup power.

Get Started With Iowa's premier Solar Provider™

Schedule a solar consultation today! Click here to get started.

Solar Services

Requirements For Solar

Solar Panel Access

An essential requirement for solar is that you have a shade-free area large enough for your power plant to be installed. The solar window is typically 9 am to 3 pm, so solar will work for you if you have direct sunlight in this window. Ideally, it faces true south; however, in some cases, we can face it west and east and anywhere in between. Just be aware that it will require a slightly larger system to output the same energy as a system facing due south.

Electrical Integration

A crucial part of the project is the electrical tie-in. Inspection by the NABEP certified inspector will determine if any electrical service upgrades are required to support the size of the proposed solar system. We also look at the requirement that the utility company may have for such a system.

Mechanical Integration

Another critical part of the system—if it’s going to be installed on a roof—is to determine if the roof is structurally sound enough to handle the additional weight of the solar system. Inspection of the condition of the shingles and roofing members will decide if it is feasible to install solar on the roof, however, with modern engineered roof systems, this is rarely an issue.

For more information on solar requirements, please see our Learning Resource page and our Certified Site Assessment page.

There are many considerations when designing and specifying solar. ECG Solar™ is here to take all the guesswork out, provide you with a complete turnkey service, help guide you through this process, and provide you with objective information that you need to know to make an informed decision.
